When you're on the hunt for the best table saw spline jigs for perfect woodworking joints, you'll find a variety of options that promise precision and versatility. From durable aluminum constructions to adjustable clamps and safety-enhancing features, these jigs cater to every woodworking enthusiast's needs. But which ones truly stand out and why? Let's explore the top contenders and uncover what sets each apart from the rest.
key Takeaways
- Woodpeckers Spline Jig offers durability with aluminum and steel construction, ideal for dovetails and miter joints.
- Thin Rip Jig features one-way roller bearing for safety and precise cuts as thin as 1/32 inch.
- Drawer Jig Locator provides adjustable spline clamp for accurate cuts in furniture processing.
- PCS Right Angle Spline Jig excels with thicker materials, suitable for spline grooves and dovetail keyways.
- Drawer Jig Locator's flip limiters and UHMW slides ensure smooth, precise drawer alignment.
2PCS Right Angle Spline Jig, Aluminum Alloy Adjustable Corner Clamp
If you're a craftsman seeking precision and versatility in your woodworking projects, the PCS Right Angle Spline Jig is a standout choice. Made from CNC aluminum alloy, it's anodized to resist rust and corrosion, ensuring durability. This jig's dimensions are 180*50*100mm, and it weighs just 1.3kg, making it compact yet sturdy. It's designed for frame depths of 15-500mm and can clamp materials from 5-42mm thick, ideal for various tasks like cutting spline grooves and dovetail keyways. While it excels with pieces thicker than 1 inch, its ease of use and precise results make it indispensable for joinery work.
Best For: Craftsmen and woodworkers who require precision and versatility for creating spline grooves and dovetail keyways in joinery projects.
Pros:
- Made from durable CNC aluminum alloy, resistant to rust and corrosion.
- Compact and lightweight design for easy handling and storage.
- Suitable for a wide range of frame depths and clamping thicknesses, enhancing versatility.
Cons:
- Performs best with pieces thicker than 1 inch, limiting its use with thinner materials.
- More suited for drawer making than frame making, which may not meet all project needs.
- Some usability concerns compared to shop-made jigs.
Drawer Jig Locator for Woodworking and Furniture Design
For woodworking enthusiasts and furniture designers seeking precision and versatility, the Drawer Jig Locator offers an ideal solution. This adjustable drawer spline clamp, crafted from high-quality aluminum alloy, guarantees durability and long service life. Measuring 283×280×92mm, it accommodates drawer lengths from 65-210mm and heights from 1/2 inch to 16 inches. Its 90° right angle design with four built-in flip limiters assures accurate positioning and alignment. You can easily adjust distances by loosening the screw counterclockwise. Weighing only 4.29 pounds, it's perfect for furniture processing and factory use. Plus, you're backed by excellent customer support and a 30-day return policy.
Best For: Woodworking enthusiasts and furniture designers seeking precision and versatility in drawer assembly.
Pros:
- Made from high-quality aluminum alloy, ensuring durability.
- Adjustable to accommodate various drawer sizes and heights.
- Easy to assemble and use, with clear alignment for precision.
Cons:
- Manual operation may not be suitable for high-volume production.
- Limited to a specific range of drawer lengths and heights.
- Not the highest rated among similar products in the category.
Thin Rip Jig for Table Saw & Woodworking Tools
The GOINGMAKE Thin Rip Jig is perfect for woodworkers seeking precision and safety in their thin strip cuts. This high-quality aluminum jig fits various T slots, ensuring compatibility with standard table saws, band saws, and routers. Its one-way roller bearing prevents kickback, providing a safe and smooth operation. You'll appreciate the mm and inch laser engraving scales for precise measurements, allowing for strips as thin as 1/32 inch. With its easy setup and zero clearance design, you can achieve consistent, uniform cuts effortlessly. Users rate it 4.5 out of 5 stars, praising its durability, accuracy, and versatile application in woodworking projects.
Best For: Woodworkers who require precise and safe thin strip cuts for their projects.
Pros:
- Simple setup with compatibility for various T slots on standard woodworking equipment.
- High precision cutting with laser engraving scales in both mm and inch.
- Safety enhanced by a one-way roller bearing to prevent kickback.
Cons:
- Might require additional zero clearance tape or inserts for enhanced safety.
- Potential fit issues with certain table saw models reported by some users.
- Limited to cutting strips with a thickness down to 1/32 inch, which may not suffice for all projects.
Woodpeckers Spline Jig for Dovetails & Miter Joints
Woodpeckers Spline Jig for Dovetails & Miter Joints stands out for woodworking enthusiasts who value precision and versatility. Designed for both router tables and table saws, this jig excels at creating strong, aesthetically pleasing dovetails and miter joints. Made in the USA, it features meticulously machined aluminum Super Track sections and sturdy, powder-coated steel legs. You'll find it perfect for handling projects from 1/2" to 16" wide, with the flexibility to adjust for larger projects. Users love its accuracy and durability, although some suggest improvements in stop sizes. With a 5-star rating, it's a top choice for enhancing your woodworking projects.
Best For: Woodworking enthusiasts who seek precision, versatility, and enhanced joint strength and aesthetics in their dovetail and miter joint projects.
Pros:
- Precision-built with aluminum Super Track and powder-coated steel legs for durability.
- Versatile for use on both router tables and table saws.
- Capable of handling a range of project sizes, from 1/2" to 3 feet wide.
Cons:
- Some users suggest improvements in the stop sizes for better alignment.
- Clamping system could be enhanced for improved usability.
- May require adjustments for handling longer projects.

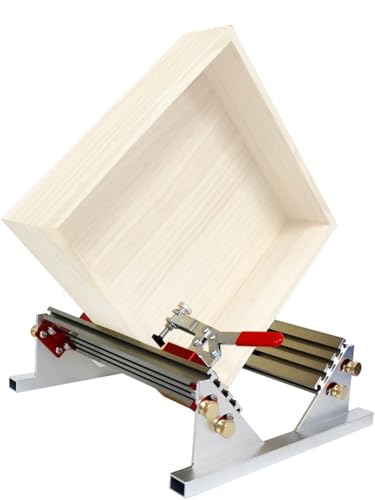

Drawer Jig Locator with Adjustable Spline Clamp
If you're looking for a versatile and durable jig for precise woodworking, the Drawer Jig Locator with Adjustable Spline Clamp is a top contender. Crafted from excellent aluminum alloy, it's sturdy and wear-resistant, promising a long service life. It features 4 flip limiters that enhance your joinery work by aligning spline cuts accurately. With two adjustable height settings, it accommodates items from 1/2 inch to 16 inches. Its UHMW slides reduce friction, preventing scuffing on machine tables. Compatible with table saws and milling machines, this jig is perfect for furniture processing and factory use. It comes with a 30-day return guarantee.
Best For: Professional woodworkers and furniture manufacturers seeking a durable and precise jig for joinery work.
Pros:
- Made from excellent aluminum alloy for durability and wear resistance.
- Features 4 flip limiters for accurate alignment of spline cuts.
- Compatible with both table saws and milling machines.
Cons:
- Limited customer ratings with an average of 3.0 out of 5 stars.
- Moderate weight at 4.33 pounds, which may not suit all users.
- Ranked low in popularity at #520,523 in Tools & Home Improvement.
Factors to Consider When Choosing a Table Saw Spline Jig
When you're choosing a table saw spline jig, you'll want to take into account several key factors. Look for durable materials and verify the jig is compatible with your table saw for a snug fit. It should offer adjustable features, prioritize safety, and provide precise, accurate cuts.
Material and Durability
Choosing the right table saw spline jig hinges on the materials and durability that guarantee long-lasting performance. Opt for jigs made from high-quality materials like aluminum alloy, as they offer great durability and wear resistance. An anodized finish is a bonus, enhancing corrosion resistance and making the jig suitable for various environments. The jig's weight, typically around 1.3 kg (2.86 lb) for aluminum, indicates its sturdiness, ensuring it holds pieces securely during use. Durable jigs should feature components that reduce friction, protecting both the jig and the machine table from excessive wear. Prioritize jigs known for a long service life, as this reflects superior construction quality and material resilience, ensuring they withstand repeated use in your woodworking projects.
Compatibility and Fit
While material and durability guarantee longevity, compatibility and fit are equally important for effective use of a table saw spline jig. Make certain the jig matches your table saw's T-slot or miter slot dimensions, like 3/8 x 3/4 or 1/4 x 3/8 inches. Check the clamping range; some jigs handle thicknesses from 5mm to 42mm, accommodating various material sizes. Consider if the jig supports the project sizes you intend to work on, with models accommodating widths from 1/2 inch to 16 inches or more. Opt for jigs with built-in alignment aids, such as flip limiters, to guarantee precision. These factors help achieve smooth, accurate joints, enhancing your woodworking projects considerably.
Adjustable Features
Considering adjustable features is vital when selecting a table saw spline jig, as it greatly impacts the versatility and precision of your woodworking projects. Look for jigs with adjustable length settings to accommodate various drawer sizes, ranging from 65mm to 210mm (2.56 to 8.27 inches). Height adjustment capabilities are also important, allowing you to work with items varying from 1/2 inch to 16 inches. Built-in flip limiters are another significant feature, enhancing the accuracy of spline cuts. Assess the clamping range—ideally, a range of 5-42mm (0.2-1.7 inches)—to handle different material thicknesses. Finally, verify the jig has UHMW slides, which reduce friction for smoother operation and protect your machine table from wear during adjustments.
Safety Mechanisms
When selecting a table saw spline jig, safety mechanisms are paramount to guaranteeing a secure and effective woodworking experience. One essential feature, one-way roller bearings, helps prevent kickback during repetitive cuts, keeping you safe. Look for jigs with a zero clearance design to minimize gaps around the blade, reducing the risk of material shifting unexpectedly. Adjustable clamps and flip limiters securely hold your materials in place, preventing slips that could lead to injuries. The construction material also matters; sturdy options like aluminum alloy enhance stability, safeguarding against accidents. Remember, regular maintenance is key—inspect bearings and clamps to verify they function properly over time. Prioritizing these safety features will enhance your woodworking practice and keep you protected.
Precision and Accuracy
How do you guarantee precise and accurate cuts with a table saw spline jig? Focus on key features that enhance precision. Look for jigs with laser-engraved scales or markings, as these help you set distances accurately and secure repeatability. Sturdiness is essential—any movement during operation can cause inaccuracies, so choose a jig with solid construction. Adjustable features like flip limiters let you fine-tune positioning, securing tight-fitting joints without gaps. Compatibility with various table saws is another vital factor; a well-fitted jig minimizes misalignment risks. By paying attention to these details, you can achieve consistent and precise woodworking joints every time. Prioritize these elements to make your woodworking projects not only accurate but also satisfying and professional.
